SETTING UP THE VECTOR DOLLY

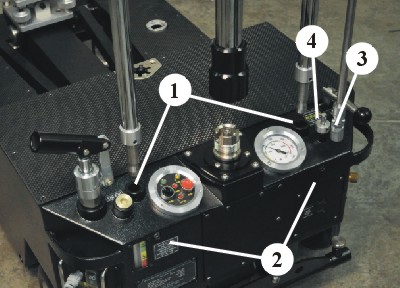

Attaching the Push Bar/Steering Post Place the Push Bar over the 2 sockets(1) as shown in Figure S1. Make sure the screws(2) are loosened and the Boom Control Knob is on the right side. Lower the Push Bar into the sockets, making sure the Valve Connection Socket(3) is on the right, next to the Valve Post(4).	Figure S1

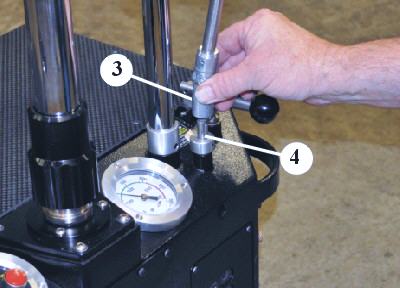

Align and slide the Valve Connection Socket(3) onto the Valve Post(4) as shown in Figure S2. Tighten the set screw.	Figure S2

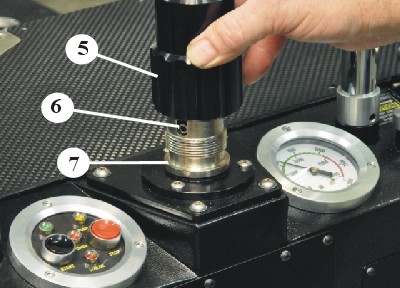

Raise the Steering Lock Nut(5) so you can see where to align the Steering Post Pins(6) with the Steering Shaft Socket(7), Figure S3.	Figure S3
