STEERING SYSTEM
(Continued)



LOWER CHAIN TENSION

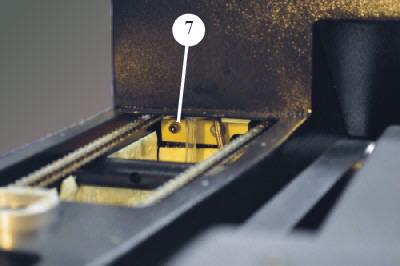

The Lower Chain can be adjusted on either or both sides of the dolly. To adjust the tension, remove the lower cover plate over the motor and/or the accumulator. Locate the Tension Block Screw(7) as shown in Figure S3.

Figure S3

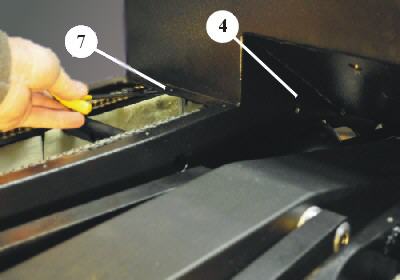

Using a 3/16 hex key, loosen the screw about 1/2 turn as shown in Figure S4

Locate the Lower Tension Port(4) on the inner wall of the dolly .

Figure S4

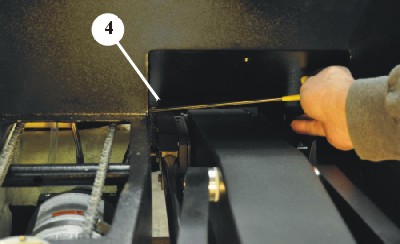

Insert a 3/16 hex wrench into the port and adjust the tension screw as shown in Figure S5.

After setting the proper tension, about 1/2 side to side movement of the chain, tighten the Tension Block Screw and replace the lower cover plate.

Figure S5
